Kubernetes: Setup grafana/loki-stack on a cluster for monitoring

This is an example of how to setup Grafana Loki stack on a Kubernetes cluster.

Installing Prerequisites

Helm is needed. Below I chose to install it to my local ‘~/bin’ directory as that is my ‘${PATH}’:

curl -fsSL --output /tmp/get-helm-3 “https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3”
chmod +x /tmp/get-helm-3
mkdir -pv “${HOME}/bin”
HELM_INSTALL_DIR=”${HOME}/bin” /tmp/get-helm-3 --no-sudo
rm /tmp/get-helm-3

Add the Grafana repository to Helm

$ helm repo add grafana https://grafana.github.io/helm-charts
“grafana” has been added to your repositories
$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the “grafana” chart repository
Update Complete. ⎈Happy Helming!⎈

Deploy it to the cluster

Note: I have deployed it to the ‘monitoring‘ namespace:

$ helm install --create-namespace --namespace monitoring loki grafana/loki-stack --set filebeat.enabled=true,logstash.enabled=true,promtail.enabled=true --set fluent-bit.enabled=true,promtail.enabled=true --set grafana.enabled=true
NAME: loki
LAST DEPLOYED: Sat Feb 11 03:32:15 2023
NAMESPACE: monitoring
STATUS: deployed
REVISION: 1
NOTES:
The Loki stack has been deployed to your cluster. Loki can now be added as a datasource in Grafana.

See http://docs.grafana.org/features/datasources/loki/ for more detail.

Test

1. ‘PASSWORD=$(kubectl get secret --namespace monitoring loki-grafana -o jsonpath=”{.data.admin-password}” | base64 --decode ; echo); echo “${PASSWORD}”’. This command should give you the password required in step 3.

2. ‘kubectl port-forward --namespace monitoring service/loki-grafana 3000:80‘.

3. Open http://localhost:3000. The username is ‘admin’ and the password is output of running step 1, e.g., ‘ZGrxcAMPmDN3DpEsAxER7jiraTIVQcyBSGilWqM4’.

4. ‘kubectl create deployment hello-minikube --image=kicbase/echo-server:1.0’: Create a deployment.

5. ‘kubectl port-forward --namespace default pods/hello-minikube-77b6f68484-t8lhk 8080:8080’: Port forward to it so we can issue some requests.

6. ‘curl localhost:8080/’: Make several of these calls, having said that one should be enough.

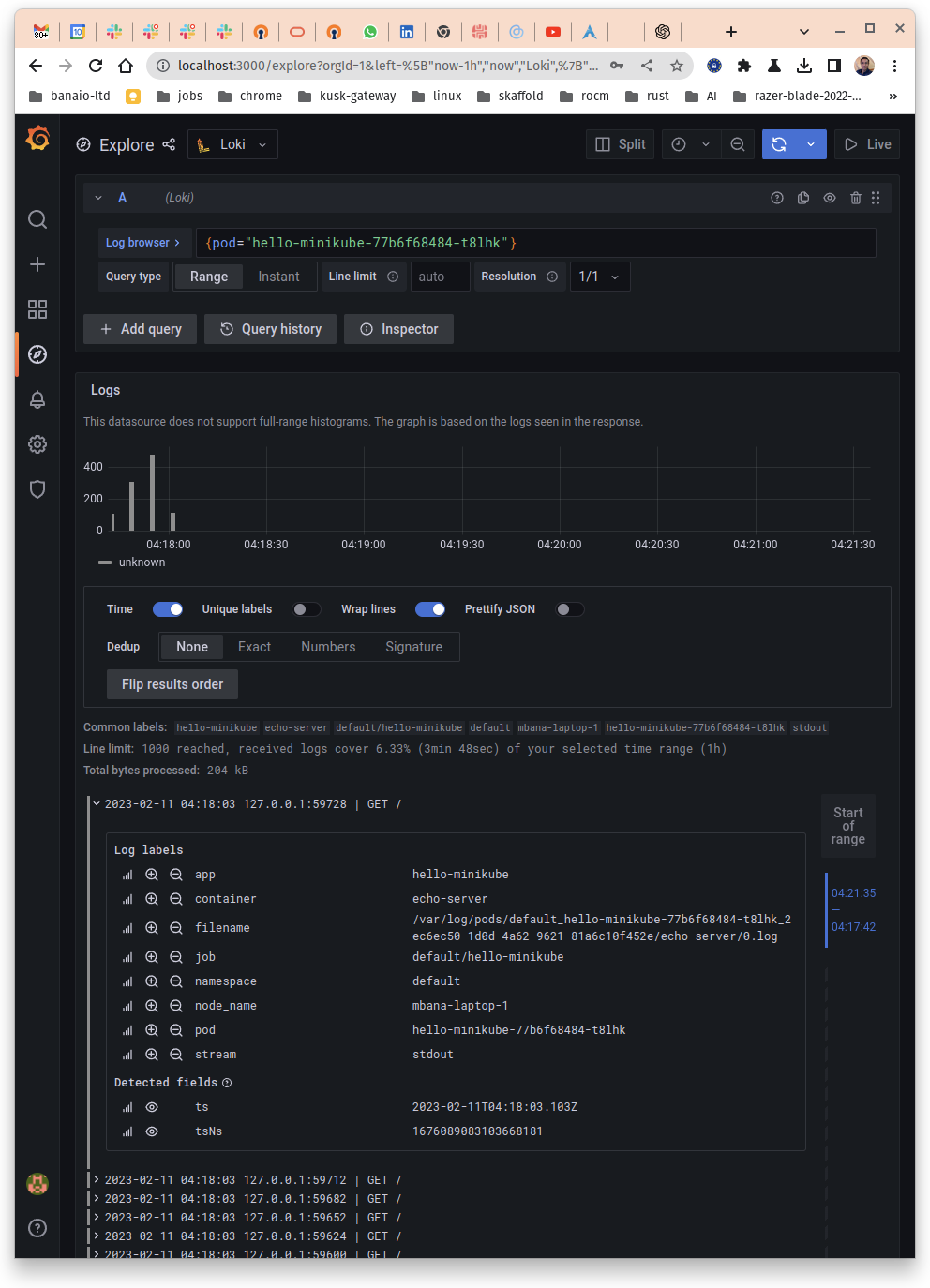

7. Look at Grafana and you should see something like below:
